FA-DUINO-32TA - Industrial Arduino Board PLC - 16 Inputs, 14 Outputs, 8 Analogue

NEW
FA-DUINO-32TA - Industrial Arduino Board PLC - 16 Inputs, 14 Outputs, 8 Analogue
  Zoom
 FA-DUINO-32TA - Industrial Arduino Board PLC - 16 Inputs, 14 Outputs, 8 AnalogueFA-DUINO-32TA - Industrial Arduino Board PLC - 16 Inputs, 14 Outputs, 8 Analogue
Our Price:  £89.00(£106.80 Inc. VAT)
+

Analogue Inputs:  8
Digital Inputs:  16
Digital Outputs:  14

Availability:



1 in stock, immediate despatch

FA-PROG - RS232 Programming Lead for the FA-DUINO PLC'sFA-PROG - RS232 Programming Lead for the FA-DUINO PLC's
CTB-8A MSB PLC Analogue/RS232 Expansion BoardCTB-8A MSB PLC Analogue/RS232 Expansion Board

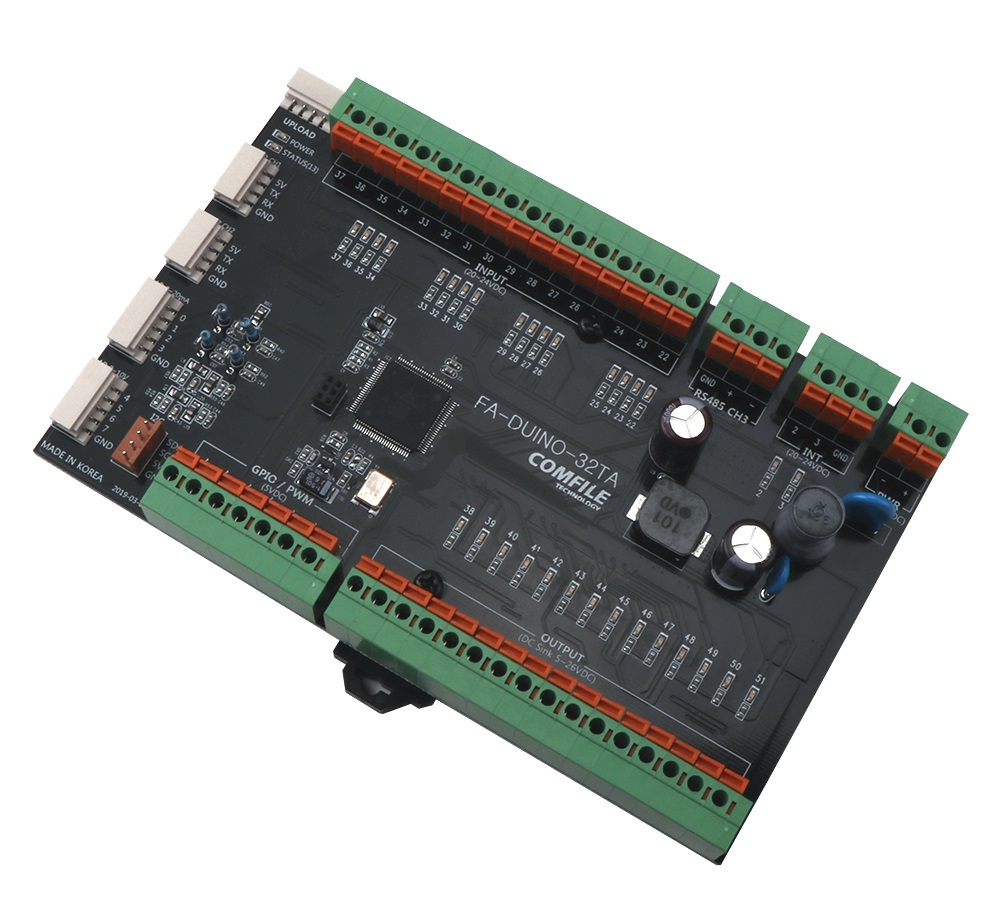

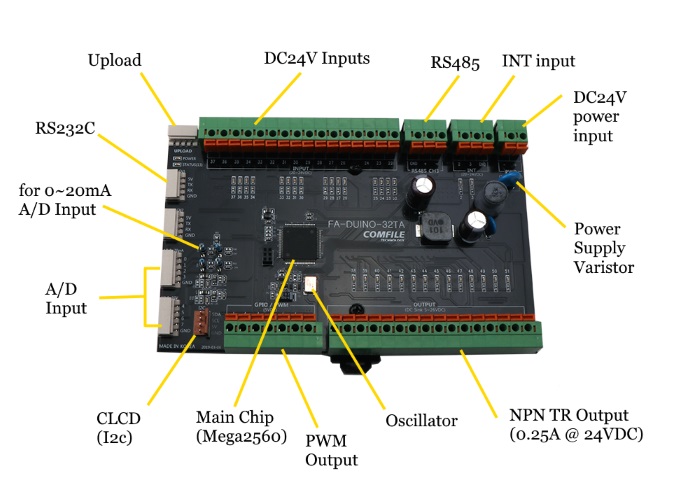

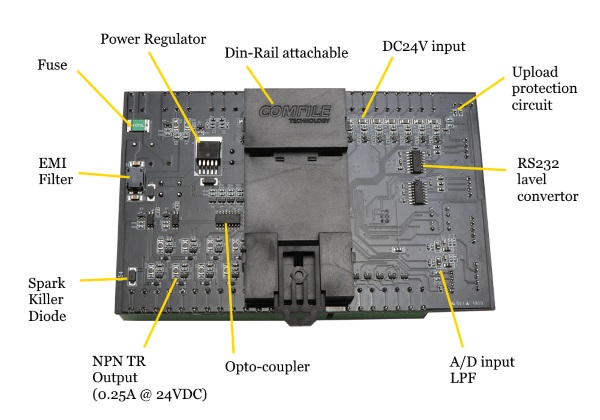

The FA-DUINO is an PLC-style Arduino-based industrial controller. It has features similar to those found in other Arduino products and can be programmed with the Arduino IDE.


  • 16 x 24VDC Inputs
  • 14 built-in NPN TR Outputs (0.25A @ DC24V)
  • 4 x 0~10V Analog Inputs (5-pin Molex 5264 connector included)
  • 4 x 0~20mA Analog Inputs (5-pin Molex 5264 connector included)
  • 2 x RS-232 Port (4-pin Molex 5264 connector included)
  • 1 x -485 Port
  • 2 x INT 24VDC Inputs
  • 6 x PWM (5V) Outputs, I2C ports
  • Powered by 24VDC
  • LCD and keypad Connectors
  • FREE Development tools -  http://arduino.cc
  • DIN Rail Mount
  • Dimensions 98mm x 154mm x 28mm

For more information about Arduino PLCs and alternative Programming Software, see this application note >>



Downloads

User Manual >>

Arduino IDE >>

Modbus Master-Slave Libraries >>
