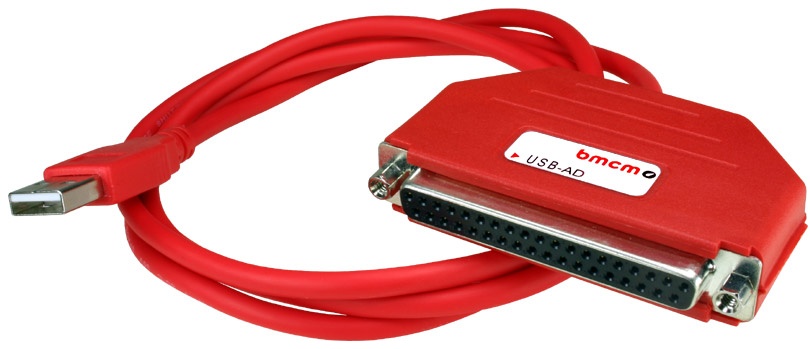

USB-AD - 16 Channel USB Multifunction DAQ Unit

USB-AD - 16 Channel USB Multifunction DAQ Unit
Zoom  Zoom
Our Price:  £89.00(£106.80 Inc. VAT)

Analogue Inputs:  16
Analogue Outputs:  1
Digital Inputs:  4
Digital Outputs:  4

Availability:

6 in stock, immediate despatch

6 in stock, immediate despatch

The USB-AD is a low cost USB based multifunction I/O unit with 16 analogue inputs, 1 analogue output, 4 digital inputs and 4 digital outputs. Data can be acquired at up to 10Hz rate per channel at 12-bit resolution. Supplied with a copy of NextView4-Live software for data acquisition and control and a wide selection of Windows, MAC and Linux programming examples.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 16 single ended analogue inputs
  • ±5V input range with 12-bit resolution
  • single ±5V 12-bit analogue output
  • 4 x 5V digital inputs
  • 4 x 5V digital outputs
  • USB 1.1 or 2.0 compatible
  • All I/O connected via 37-way D-type socket
  • Small 37-way D-type connector shell housing
  • Windows, MAC, Linux drivers
  • Supplied with a free copy of NextView Lite Trial
  • Supplied with programming examples in VB, C++ Delphi, .NET
  • Can be used with LabVIEW and Profilab Graphical Programming Software

The USB-AD is a low cost USB based multifunction I/O unit with 16 analogue inputs, 1 analogue output, 4 digital inputs and 4 digital outputs. Data can be acquired at up to 500Hz rate at 12-bit resolution. All I/O are presented to a 37-way D-type socket. The user can connect to this directly or optional expansion boards are available. For use with USB 1.1 and 2.0 systems, up to 127 units can be connected to a single PC.

Drivers are available for Windows, MAC and Linux operating systems. The USB-AD is supplied with an Active-X component and comprehensive programming examples for use with most common programming languages. There are also VI for use with LabVIEW and there is a USB-AD component ion the ProfiLab programming package.

The USB-AD supported by NextView 4, the software for data acquisition and analysis. A fully functional 30-day trial is included with delivery to directly test the functionality of the USB-AD.

Optional Software

RealView

RealView is a Windows data logging and chart recorder application, which records and plots measured values from analogue hardware devices in real-time. Several curves can be plotted into a single chart. Several charts can be arranged on one or more pages if necessary. Plot options like pen width or pen colour can be altered to suit. Chart screen shots can be captured, charts printed with annotations and raw data can be exported to Excel.

More Information >>

Profilab

ProfiLab-Expert is a low cost graphical programming software package for data acquisition and control applications. No programing experience is needed, programs are written by connecting function blocks together with wires. Professional user panels can be designed with custom controls, and the whole program can be compiled into a stand-alone executable file, with no run-time penalties.

More Information >>

NextView

Visualize, control, automate, configure, scan, analyze, and document with one software. You can realize your measurement applications completely without any programming efforts.

More Information >>


Downloads

User Manual >>

Hardware Driver >>

Programming Interfaces >>

RealView Demo >>

ProfiLab Demo >>

NextView Trial >>
