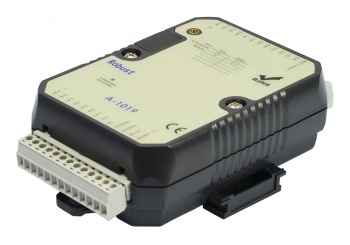

A-1019 RS485 and USB Modbus 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, Thermistor

A-1019 RS485 and USB Modbus 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, Thermistor
  Zoom
Our Price:  £83.00(£99.60 Inc. VAT)
+
Add USB Programming Lead:

Analogue Inputs:  8
Digital Inputs:  4

Availability:



3 in stock, immediate despatch

A-1019 is a RS485 and USB remote IO unit with 8 Universal Analogue Inputs accepting 4-20mA, thermocouples and thermistors: it also has 4 digital inputs. The unit supports both Modbus RTU and Modbus ASCII protocols. The USB port can be used for configuration or can be used as the main communication interface, installing as a virtual serial port: no external power is required when connected to USB. Featuring a robust industrial construction with the use of optical isolators to prevent ground loop effects and limits damages from power surges.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 8 isolated, differential analogue inputs
    • Current: 0-20mA, 4-20mA
    • Thermocouple: J,K,T,E,R,S,B
    • Thermistor: 10k - 1k
  • ADC Resolution: 16-bit
  • Input Impedance:
    • Current: 100 Ω
    • Voltage : 10 MΩ
  • Input Accuracy: ±0.1%
  • Sampling Rate: 10 sample/second (total)
  • CMR @ 50/60 Hz: 120 dB
  • 4 x Digital Inputs (with opto Isolation)
    • Status Low:<1VDC
    • Status High:>5~30VDC
  • LED indication of IO status
  • Output state pre-settable on Comms fail
  • Output state pre-settable on power-up
  • Input/Output Operating Frequency: 10HZ
  • Interface:
    • RS485
    • USB - installs as a virtual serial port
  • Protocol - Modbus RTU or Modbus ASCII
  • Communication Baud Rate: 1200~115200bps
  • Isolation Voltage: 5000 V DC
  • Surge , EFT And ESD Protection
  • Operating Temperature: - 20 to 75º C
  • Power:
    • 10 to 30VDC, 24VAC (RS485)
    • via USB port
  • Panel or DIN Rail mount
  • Dimensions - 72mm x 118mm x 39mm
Included Software

The unit is configured using the free Utility Software. This can be used to set the units' IP address and to set the input ranges and monitor inputs.




Optional Software

DAQFactory

DAQFactory is a low cost data acquisition and control software for SCADA, Factory Automation, HMI and Test and Measurement applications. DAQFactory provides all the tools needed to acquire data, log it, share it on a network, display it on the screen, graph it, analyse it, and automate your project. DAQFactory can communicate with just about any serial or Ethernet device using Modbus RTU, ASCII or Modbus/ TCP. It also supports a wide variety of DAQ devices including LabJack USB devices and many other DAQ cards.

More Information >>




Downloads

User Manual >>

Quick Start Guide >>

Utility Software >>

USB Driver >>
