EDAM-5060 - 10 x DPDT Relays, 12 Digital Inputs

Zoom

Our Price: £159.00(Exc. 20% VAT)

Digital Inputs: 12
Digital Outputs: 10

Availability:

1 in stock, immediate despatch

The eDAM-5060 is a member of the eDAM-5000 range of industrial USB/Ethernet/RS232/485 Modbus TCP data acquisition and control units. The eDAM-5060 features 10-channel Relays with change-over contacts and 12-channels of opto-isolated digital inputs. The eDAM-5060 connects to USB, standard 10/100 LAN via a RJ45 connector or RS485 networks and supports the popular Modus/TCP or Modus/RTU or simple ASCII protocols for easy integration with most SCADA systems. Also features built-in web server for simple monitoring and control.

10 x DPDT Relay outputs
Contact rating AC 3A/240V, DC 3A/30V
12 opto-isolated digital inputs - contact closure or voltage with pulse counting
Isolation Voltage: 2000Vdc
Communication - USB2.0, 10/100 Ethernet, RS485/232C
Protocol - Modbus/TCP on TCP/IP and RTU on UDP/IP, USB or RS232/RS485, ASCII commands
Operating Temperature: - 10 to 70º C
Power:

USB powered (if USB connection)
External power with unregulated 10 to 30VDC

Status Indicator: Power, Communication (Ethernet, USB, RS485/232)
DIN Rail mount
Dimensions - 135mm x 104mm x 29mm

The eDAM-5060 features 10-channel Relays with change-over contacts rated witha 3A mains rating and 12-channels of opto-isolated digital inputs that can be contact closure or a 5-24VDC input: these also act as pulse counter channels.

The eDAM-5060 can connect to standard 10/100 LAN via a RJ45 connector or a USB port utilizing a Virtual Serial Port or a RS232 or RS485 connection. It supports the popular Modus/TCP or Modbus RTU protocols as well as simple ADAM-compatible ASCII protocol for easy integration with most SCADA systems such as DAQFactory and data logging packages. The EDAM-5060 can can accept connections to all communication interfaces simultaneously

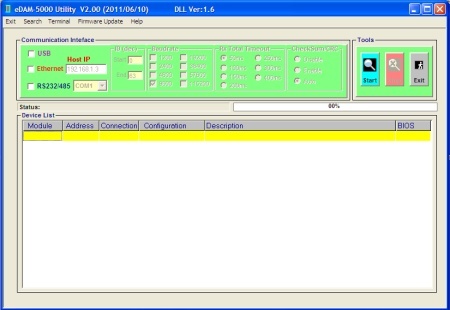

The Utility software offers a graphical interface that helps you configure the EDAM-5000 modules. It is also very convenient to test and monitor your remote DAQ system.

There are several way to communicate with the eDAM-5000 series.

ASCII commands - Command Syntax: [delimiter character][address][channel][command][ data][checksum][carriage return]

MODBUS/TCP /RTU- standard MODBUS read/write commands are supported - please see manual

TCPDAQ ActiveX Control

TCPDAQ.OCX is a collection of ActiveX controls for performing I/O operations within any compatible ActiveX control container

DLL and ActiveX with programming examples

Downloads

User Manual >>

Drivers and Software >>
