USB-OI16 - USB 32 Channel Isolated Digital I/O unit

USB-OI16 - USB 32 Channel Isolated Digital I/O unit
  Zoom
Our Price:  £199.00(£238.80 Inc. VAT)
+

Digital Inputs:  16
Digital Outputs:  16
Pulse Counter Inputs:  2

Availability:



Special order, 3-5 day despatch

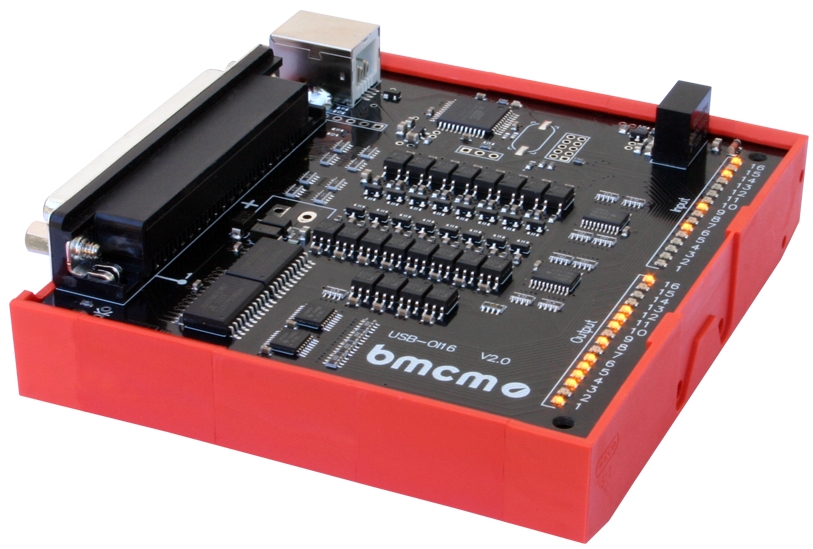

The USB-OI16 is a USB digital IO unit that provides 16 opto-isolated digital inputs, 16 opto-isolated semiconductor switch outputs and 2 counter/quad-encoder inputs. Supplied with a copy of NExtView4 Live software and plenty of Windows, MAC and Linux programming examples.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 16 opto-isolated digital inputs with a 3-32V DC input range (logic high >2.5V)
  •  2 counters/incremental encoders (32 bit, opt.counter reset) can be connected to any digital inputs - max 250kHz
  • 16 opto-isolated high-side switch outputs switching 7-32VDC at up to 0.25A per output (max 0.8A per 8-channel driver)
  • USB 1.1 or 2.0 compatible
  • All I/O connected via 37-way D-type socket
  • DIN rail mount
  • Dimensions: 97mm x 105mm x 30mm
  • Windows, MAC, Linux drivers
  • NextView4 Trial Software
  • Supplied with programming examples in VB, C++ Delphi, .NET
  • Can be used with LabVIEW and Profilab Graphical Programming Software

Optional Software

RealView

RealView is a Windows data logging and chart recorder application, which records and plots measured values from analogue hardware devices in real-time. Several curves can be plotted into a single chart. Several charts can be arranged on one or more pages if necessary. Plot options like pen width or pen colour can be altered to suit. Chart screen shots can be captured, charts printed with annotations and raw data can be exported to Excel.

More Information >>



Profilab

ProfiLab Expert is a low cost graphical programming software package for data acquisition and control applications. No programing experience is needed, programs are written by connecting function blocks together with wires. Professional user panels can be designed with custom controls, and the whole program can be compiled into a stand-alone executable file, with no run-time penalties.

More Information >>



NextView 4 -Data Acquisition Software

NextView-4 is a Windows data logging and control application for use with the BMC range of data acquisition units. The Lite version is for use with a single DAQ unit whilst the Pro version is for use with a multiple DAQ units. With NextView4 you can view data in numeric and chart recorder formats, log data to a CSV file, add buttons, sliders and automate your data acquisition task.

More Information >>



NextView4-Pro Data Acquisition Software





Downloads

User Manual >>

Software Drivers >>

Software Installation Guide >>

LIBAD Programming Library Guide >>

LIBAD Library for Windows >>

LIBAD Library for MAC >>

LIBAD Library for Linux >>

LabVIEW VI Guide >>

LabVIEW VI >>
