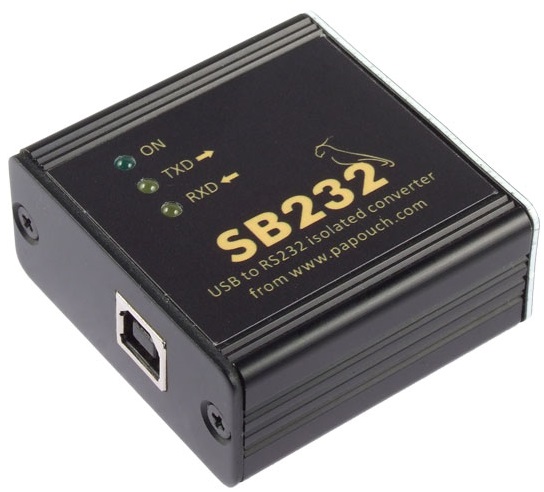

SB232 - Isolated USB to RS232 Converter

SB232 - Isolated USB to  RS232 Converter
Zoom  Zoom
Our Price:  £89.00(£106.80 Inc. VAT)
Add DIN Rail Clip:

Availability:

Special order, 7-14 days

Special order, 7-14 days

Isolated industrial USB to RS232 converter. Easy installation: A virtual COM port is created on your Windows PC. Easily usable also in Linux OS.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Conversion of USB to RS232 (serial port, COM port)
  • Transferring all RS232 signals
  • Galvanically isolated RS232 port
  • Access to the serial line via a virtual serial port
  • Interruption of ground loops
  • PC protection against overvoltage
  • Data transfer rate up to 500 kb/s
  • Indication of power on and data flow by three indicators (ON, TXD, RXD)
  • 5 V power supply from the USB interface
  • A unique serial number that allows the user – via USB-HUB – to connect multiple converters together with other USB devices
  • Connection to a PC via standard USB cable supplied with the converter
  • Working temperature range: -40 to +85 °C
  • Dimensions 54 × 62 × 24 mm
  • Supported operating systems: Windows 32bit/64bit, Linux, MAC OS, Android

Downloads

User Manual >>

Drivers >>
