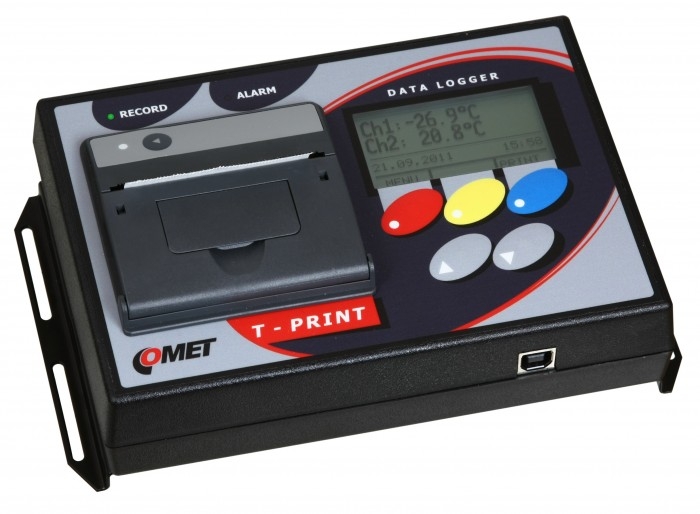

G0241 T-Print Trailer Temperature Data Logger with Printer

G0241 T-Print Trailer Temperature Data Logger with Printer
Our Price:  £519.00(£622.80 Inc. VAT)
Temp Sensor 1:
Temp Sensor 2:

Digital Inputs:  2
Temperature Inputs:  2



Special order, 5-10 days

The T-Print data loggers are for use with freezer trailers and can log and print up to 2 temperatures during during transport of food, pharmaceuticals, flowers, live animals and other perishable goods. The T-print also has 2 contact inputs to record say door openings, fridge unit operation, etc. Featuring easy history printouts, printout of table and graphs, large graphic illuminated display, indication of temperature high or low alarms by LED and built-in siren.

  • Record from one or two temperature probes - 5m to 20m cable lengths available
  • Temperature Measuring Range -90 to +260°C
  • Delivery Ticket, Journey Ticket and Multi Day printouts
  • Selectable numerical and graphical print-out
  • Print from the last record to the history till button is pressed
  • Print up to set hour in current day
  • Print of set number of hours to the history
  • Fast print to usual 57mm thermo paper in 10m rolls
  • Large graphic illuminated display
  • Approximately 3400 record lines/one paper roll
  • High/Low Temperature Alarms - LED and built-in siren
  • Data logging interval adjustable from 1 minute to 60 minutes
  • Total memory capacity 1MB - up to 172,000 records (up to 5 years of record permanently in memory)
  • Record of actual or average values
  • Calculated MKT - mean kinetic temperature for storing of pharmaceuticals in the PC program
  • Cyclic record - after filling the memory oldest records are overwritten by new
  • Operating temperature range -30 to +65°C
  • USB interface for record download to the PC
  • Free PC software
  • RS232 socket for connection to external GSM modem
  • Dimensions 175 x 124 x 51mm (W x H x D)
  • Power: 9 to 32 V dc, protected against alternator load shedding, internal Lithium back-up battery
  • Includes traceable calibration certificate
