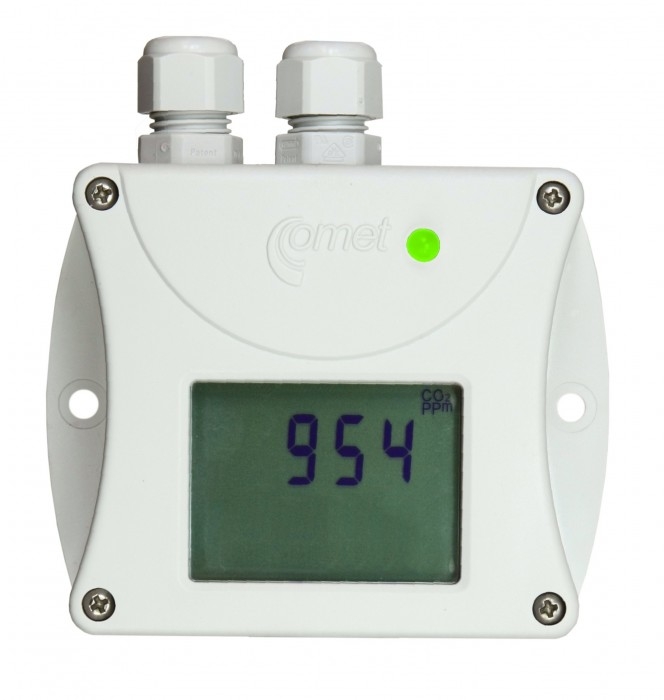

T5440 CO2 transmitter with RS485 output

T5440 CO2 transmitter with RS485 output
Zoom  Zoom
Our Price:  £289.00(£346.80 Inc. VAT)

CO2 Inputs:  1

Availability:

Special order, 2-4 days

Special order, 2-4 days

A low cost Carbon Dioxide transmitter with an RS485 output.  Supports MODBUS RTU and ASCII ADAM-4000 compatible communications protocol. The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell.




Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Output: RS485
  • Measured Value: CO2
  • Construction Type: Ambient Air
  • Design:    Industrial
  • CO2 Measuring Range: 0-2000ppm with ±50ppm accuracy
  • Measuring interval of CO2 15s
  • Lcd Display
  • Communication protocol:    ModBus RTU and Advantech ADAM compatible protocol
  • Communication speed: 110 to 115200 Bd
  • Free program TSensor for configuring of the transmitter is ready to Download
  • Free program SensorReader for logging values from one transmitter to a PC disk file is ready to Download
  • IP protection: IP65
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 220g

The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell.  The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability and eliminates the need of periodical recalibration in the field.

The transmitter contains a microprocessor based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh. Large dual line LCD for display of CO2 concentration. Transmitters are designed for use in non-aggressive environment.

Measured values are converted to RS485 serial output.

Serial output RS485 - transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200Bd.


Downloads

User Manual >>

TSensor Configuration Software >>

SensorReader Datalogging Software >>
