TCW122B-WD - Ethernet Watchdog Module - 2 Relay Channel

TCW122B-WD - Ethernet Watchdog Module - 2 Relay Channel
Zoom  Zoom
Our Price:  £69.00(£82.80 Inc. VAT)
Add UK 12V DC Mains PSU:
Add EU 12V DC Mains PSU:

Analogue Inputs:  2
Digital Inputs:  2
Digital Outputs:  2
Temperature Inputs:  2
Humidity Inputs:  2

Availability:

Incoming, 5-7 days

Incoming, 5-7 days

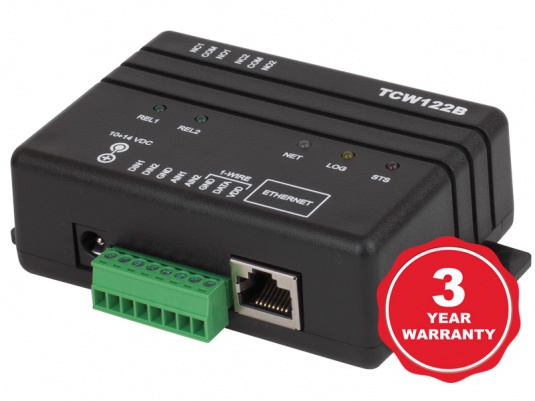

TCW122B-WD is an IP watchdog monitoring module, specially designed for a failsafe monitor system. The module controls the functionality of devices or networks by transmitting or receiving respectively ICMP echo request or ICMP echo reply. The appropriate relay is activated if there isn’t an ICMP echo (ping) for certain time. This can restart the monitored device or network switch. The TCW122B-WD also has two digital and two analog inputs for geneal use.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 10 Mbit Ethernet connectivity
  • 2 relay outputs with NO and NC contacts - 24V 3A
  • Auto relay toggle on PING request fail
    • Mode outgoing (echo request) or incoming (echo replay) mode can be chosen;
    • Outgoing ping interval – time between two echo requests;
    • Ping timeout for restart – time out before activation of relay;
    • IP address - IP address of ICMP corresponding host;
    • Maximum number of restarts  –  maximum number of activation of  the  relay (restarts) after the timeout has expired.
  • Password protected web based configuration and control
  • 2 digital inputs with "logic level" and "dry contact" modes
  • 2 analogue inputs with 0-60V input range
  • Long 1-Wire communication interface, which support up to 2 temperature sensors TST1XX or up to 2 temperature/humidity sensors TSH2xx
  • Temperature and humidity monitoring and control
  • SNMP v.1, SMTP, VLAN support
  • XML/HTTP API commands support
  • Sending SNMP Traps messages under certain conditions
  • Android and IOS Apps
  • Sending E-mail messages under certain conditions
  • MAC Address filtering
  • Remote FTP firmware update
  • Supply voltage: 12±2VDC
  • Dimensions: 107mm x 72mm x 32mm

TCW122B-WD is an IP watchdog monitoring module, specially designed for a failsafe monitor system. The module controls the functionality of devices or networks by transmitting or receiving respectively ICMP echo request or ICMP echo reply.The appropriate relay is activated if there isn’t an ICMP echo (ping) for certain time. This can restart the monitored device or network switch.

TCW122B-WD has two digital and two analog inputs. It’s two relays have normally open and normally closed contacts. For every of monitored parameters – temperature, humidity, analog voltage and status of digital input, SNMP trap can be sent on certain conditions. The relays can be activated remotely (WEB and/or SNMP) or automatically from presence/absence of ping.

Remote control

The controlled device is connected in series with the relay contacts. Users can operate TCW122B-CM using a web browser or SNMP application. Both relays are managed independently.

Data acquisition

The  TCW122B-CM  can be  used  in  Data  Acquisition  Systems  (DAQ).  The device  uses SNMP v.1 protocol for communication with monitoring and management software applications.

Monitoring

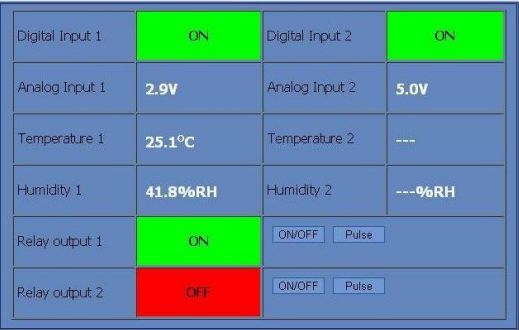

The Monitoring page provides information about the state of the relays and digital inputs, values of analogue voltages (applied on analogue inputs), temperature and humidity.


The state of the relay can be changed by appropriate “ON/OFF” button. To change the state of relay for a while “Pulse” button should be pressed. Duration of the pulse is specified in “Pulse Duration” field of “I/O Setup” page.



Alarms and Automatic Control

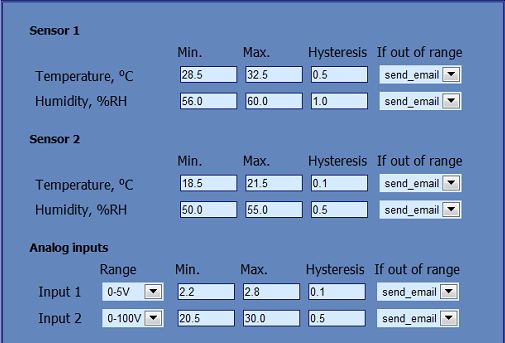

For temperature, humidity and analogue values minimum and maximum alarm thresholds can be set. On alarm, the TCW122B-CM can;
  • send an alarm email
  • send a SNMP trap to monitoring software
  • an output relay can be activated. The relay will de-activate when the alarm condition clears. It is possible to use this as a control function.



Online Demo >> (admin, admin)

Android App

TCW12x Remote Control allows you to monitor and control your TCW122B-CM devices. Entering the IP address of your installed ethernet controller, this app will be able to display the sensor values, using SNMP protocol.

Features:

  • display temperature and humidity values (up to 2 temperature and 2 humidity sensors are supported)
  • setting the tresholds for the monitored parameters
  • display 2 analogue and 2 dry contact inputs
  • control 2 relay outputs
  • adding descriptions of monitored parameters

TC Monitor Software

TC Monitor is easy to use Windows application for monitoring and control of TCW products. TC Monitor can collect and display data from controllers installed in different locations (sites). The collected data is stored in SQL database and can be displayed or exported in MS Excel format for further analysis. TC Monitor has a simple web interface, which enables easy and fast configuration. Monitored parameters can be 1-wire sensors, digital and analog inputs and relay outputs.

The free version of TC Monitor provides 10 credits, this means up to 10 different parameters can be monitored and logged. More Information >>

Optional Software

Profilab

ProfiLab-Expert is a low cost graphical programming software package for data acquisition and control applications. No programing experience is needed, programs are written by connecting function blocks together with wires. Professional user panels can be designed with custom controls, and the whole program can be compiled into a stand-alone executable file, with no run-time penalties.

More Information >>


Downloads

User Manual >>

TCW Discover Utility >>

SNMP MIB Table >>

TC Monitor Manual >>

TC Monitor Download >>


Continue ShoppingTell a Friend
