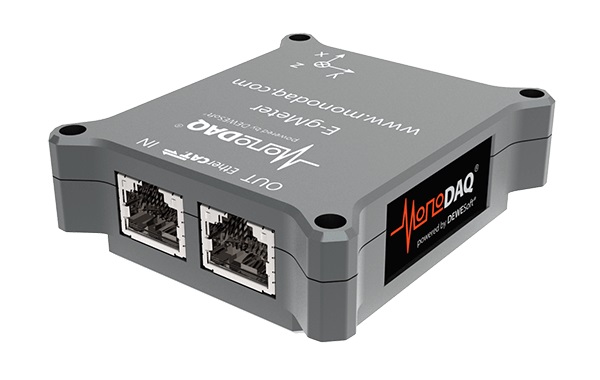

MonoDAQ-E-gMeter - EtherCAT IEPE 3-axial MEMS accelerometer DAQ Unit

MonoDAQ-E-gMeter  - EtherCAT IEPE 3-axial MEMS accelerometer DAQ Unit
  Zoom
MonoDAQ-E-gMeter  - EtherCAT IEPE 3-axial MEMS accelerometer DAQ UnitMonoDAQ-E-gMeter  - EtherCAT IEPE 3-axial MEMS accelerometer DAQ UnitMonoDAQ-E-gMeter  - EtherCAT IEPE 3-axial MEMS accelerometer DAQ Unit
Our Price:  £989.00(£1,186.80 Inc. VAT)
+

Analogue Inputs:  1

Availability:



Special order, delayed despatch

MonoDAQ-E-gMeter is an all-in-one sensor and a data acquisition device with a very low noise 3-axial MEMS accelerometer. The MonoDAQ-E-gMeter has an EtherCAT interface and DEWESoft software support. Power and signal over the same cable allows it to be distributed all over the structure that requires acceleration monitoring.


  • Extremely low noise: 25 ug/sqrt(Hz)
  • +-2 g, +-4 g, +-8 g measurement range
  • Offset error +-25 mg
  • Up to 50 m device-to-device
  • Signal and power isolation from EtherCAT to front-end
  • EtherCAT bus, daisy-chaining with single cable up to 50m device-device
  • Data interface EtherCAT, 100Mbit/s
  • Data interface connectors: RJ45 (1 cable for data, power and sync, daisy chainable)
  • Power supply: 12V to 50V
  • Temperature range: -20°C to 60°C
  • Dimensions: 82x62x28mm
  • DEWESoft X3 software support
  • Contents:
    • 1x MonoDAQ-E-gMeter
    • 1x Passive PoE power injector
    • 1x USB-to-12V power supply

MonoDAQ-E-gMeter is an all-in-one sensor and a data acquisition device with a very low noise 3-axial MEMS accelerometer. The MonoDAQ-E-gMeter has an EtherCAT interface and DEWESoft software support. Power and signal over the same cable allows it to be distributed all over the structure that requires acceleration monitoring.

Devices are daisy-chained using standard RJ45 cable.

Software

The MonoDAQ MonoDAQ-E-STG comes with a built-in LITE licence for DEWESoft, a powerful data acquisition, processing and visualization tool.

DEWESoft features all sorts of data analysis tools that can be used in real time on the incoming data. The user can design his/her own user interface with various graphs. All that is required are a few mouse clicks. If the predefined functions are not suitable, mathematical equations can be entered and executed as well. Data can be recorded and exported to all sorts of file formats to allow further analysis and treatment in the tool of your choice. Besides recording data DEWESoft can also record video allowing to visually link data to events.

Features

  • time domain recorder
  • XY recorder
  • FFT recorderscope
  • triggered storing
  • GPS
  • video
  • statistics (RMS, peak-peak, STDV etc.)
  • IIR-, FIR-filters
  • integration, derivation
  • vector analysis
  • export to Excel, Matlab, Flexpro

Downloads

User Manual >>

DEWESoft Software 32-bit >>

DEWESoft Software 64-bit >>
