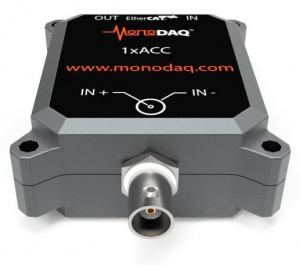

MonoDAQ-E-ACC - EtherCAT IEPE Acceleration Sensor DAQ unit

MonoDAQ-E-ACC - EtherCAT IEPE Acceleration Sensor DAQ unit
  Zoom
 MonoDAQ-E-ACC - EtherCAT IEPE Acceleration Sensor DAQ unitMonoDAQ-E-ACC - EtherCAT IEPE Acceleration Sensor DAQ unit
Our Price:  £678.00(£813.60 Inc. VAT)
+


Analogue Inputs:  1

Availability:



Special order, delayed despatch

MonoDAQ-E-ACC IEPE Acceleration Sensor Amplifier is used for high precision vibration measurements. The MonoDAQ-E-ACC provides high quality signal conditioning for IEPE sensors. Data is transfered over EtherCAT to a PC running powerful and easy-to-use DEWESoft data acquisition software.


  • IEPE and voltage input
  • Input ranges: 10V, 5V, 1V, 200mV
  • High-pass filter: off, 0.1Hz, 1Hz
  • ADC resolution: 24-bit
  • ADC type: sigma-delta
  • Max. sample rate: 1kS/s (upgradable to 40kS/s)
  • IEPE current: 4mA, 8mA
  • TEDS over IEPE
  • High-pass filters: 0.1Hz, 1Hz
  • Isolation: 125Vrms channel to ground isolation
  • Signal and power isolation from EtherCAT to front-end
  • EtherCAT bus, daisy-chaining with single cable up to 50m device-device
  • Data interface EtherCAT, 100Mbit/s
  • Data interface connectors: RJ45 (1 cable for data, power and sync, daisy chainable)
  • Power supply: 12V to 50V
  • Temperature range: -20°C to 60°C
  • Dimensions: 82x62x28mm
  • DEWESoft X3 software support
  • Contents:
    • 1x MonoDAQ-E-ACC
    • 1x Passive PoE power injector
    • 1x USB-to-12V power supply

The MonoDAQ-E-ACC IEPE Acceleration Sensor Amplifier is used for high precision vibration measurements. The MonoDAQ-E-ACC provides high quality signal conditioning for IEPE sensors. Data is transfered over EtherCAT to a PC running powerful and easy-to-use DEWESoft data acquisition software.

Devices are daisy-chained using standard RJ45 cable.

Software

The MonoDAQ MonoDAQ-E-STG comes with a built-in LITE licence for DEWESoft, a powerful data acquisition, processing and visualization tool.

DEWESoft features all sorts of data analysis tools that can be used in real time on the incoming data. The user can design his/her own user interface with various graphs. All that is required are a few mouse clicks. If the predefined functions are not suitable, mathematical equations can be entered and executed as well. Data can be recorded and exported to all sorts of file formats to allow further analysis and treatment in the tool of your choice. Besides recording data DEWESoft can also record video allowing to visually link data to events.

Features

  • time domain recorder
  • XY recorder
  • FFT recorderscope
  • triggered storing
  • GPS
  • video
  • statistics (RMS, peak-peak, STDV etc.)
  • IIR-, FIR-filters
  • integration, derivation
  • vector analysis
  • export to Excel, Matlab, Flexpro

Downloads

User Manual >>

DEWESoft Software 32-bit >>

DEWESoft Software 64-bit >>
