TSP200 - Barometric Pressure Sensor

Zoom

Our Price: £56.00(£67.20 Inc. VAT)

–+

Notify me when this item is available

Availability:

Incoming, 5-6 days

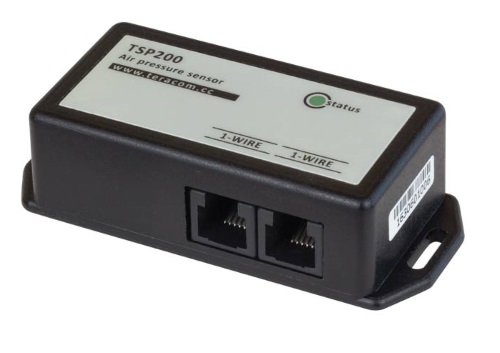

TSP200 is a is a 1-Wire barometric pressure sensor for use only with the Teracom TCW220 and TCW241. The basic silicon MEMS element is based on proven piezo-resistive pressure sensor technology. It has high EMC robustness, high accuracy and linearity and long-term stability. The 1-Wire barometric pressure sensor has two RJ11 connectors for easy daisy chain sensors wiring.

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

Working pressure range: 300 to 1100 hPa
Relative accuracy: (950 to 1050hPa, @25°C) ± 0.12 hPa
Absolute accuracy: (950 to 1050hPa, @25°C) ± 1 hPa
Resolution: 0.1 hPa
Dimensions 85 x 35.1 x 23.5 mm
Operating temperature range: -20 to +70 °C
Operating humidity range: 0 to 70 %RH
IP30 Ingress protection

User Manual >>
