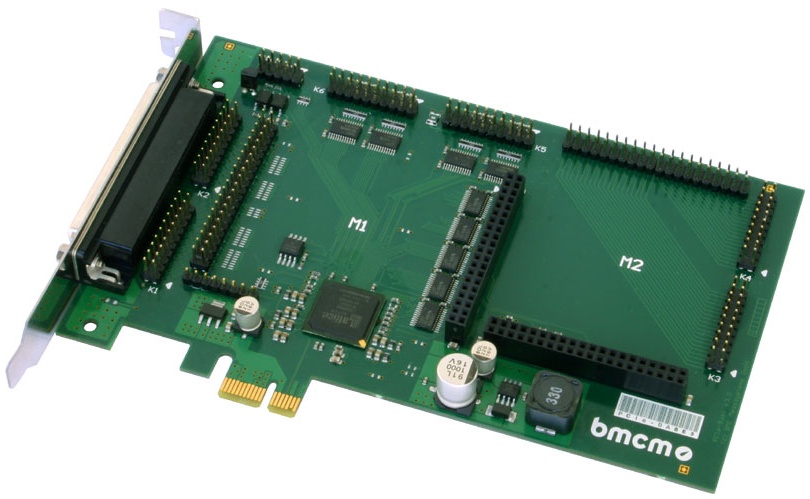

PCIE-BASE- Multifunction Modular IO Card

PCIE-BASE- Multifunction Modular IO Card
Zoom  Zoom
Our Price:  £319.00(£382.80 Inc. VAT)

Analogue Inputs:  32
Analogue Outputs:  8
Digital Inputs:  32
Digital Outputs:  32

Availability:

Special order, 7-10 days

Special order, 7-10 days

The PCI-BASEII is a PCI multi-function measuring card with a modular I/O concept at an unbeatable price. This allows the user to tackle any measuring task by assembling his individual measuring card. Up to 2 analogue/digital I/O modules can be fitted giving up to 32 analogue inputs at up to 500kHz sampling rate. In addition, the card has 16 digital I/O. Supplied with a copy of NextView4-Live software for data acquisition and control and a wide selection of Windows, MAC and Linux programming examples.

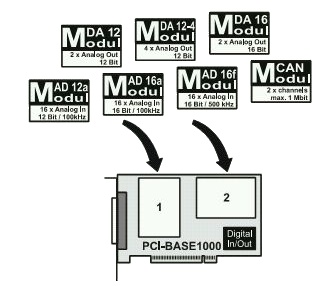

  • Modular I/O Card with slots for 2 expansion modules
  • Up to 32 analogue inputs
    • MAD16a: 100kHz, 16 Bit
    • MAD16f: 500kHz, 16 Bit
  • Up to 8 analogue outputs
    • MDA12: 12 Bit, 2 outputs
    • MDA16-2i: 16 Bit, 2 outputs
    • MDA16-4i: 16 Bit, 4 outputs
    • MDA16-4i: 16 Bit, 4 outputs
  • CAN bus module 2 channels, max.1MBit
  • 16 Digital inputs and 16 digital outputs
  • Windows 2000/XP/Vista, MAC, Linux drivers
  • Supplied with a free copy of NextView 4 Live
  • Supplied with programming examples in VB, C++ Delphi, .NET
  • Can be used with LabVIEW and Profilab Graphical Programming Software

The PCI-BASEII PCI multi-function measuring card with a highly integrated and modular concept at an unbeatable price which allows the user to tackle any measuring task by assembling his individual measuring card.

The modular concept easily allows for 32 analogue inputs with resolutions of 12 or 16 Bit and sampling rates of 100kHz or 500kHz. 12 or 16 bit analogue output modules are also avaiable. In addition, the card has 16 digital inputs and 16 digital outputs. This means that the PCI-BASEII is a digital I/O card itself.




Included as accessory is the hardware independent ActiveX control LibadX for programming under Windows® 2000/XP/Vista. In addition the PCI-BASEII can be used under Windows® 2000/XP/Vista together with our powerful software for acquisition and processing of measuring data NextView®4. It is available as "Professional", "Lite" or "Client/Server" version. The free version NextView®4 Live! is included with delivery.
