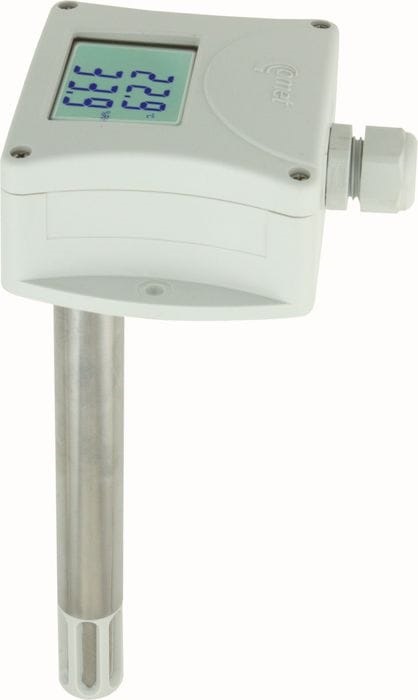

T3113D Temperature and humidity probe with LCD and 4-20mA output - Duct mount

T3113D Temperature and humidity probe with LCD and  4-20mA output - Duct mount
  Zoom
Our Price:  £215.00(£258.00 Inc. VAT)
+

Temperature Inputs:  1
Humidity Inputs:  1

Availability:



1 in stock, immediate despatch

PP4  Flat circular flange for Comet Duct SensorsPP4 Flat circular flange for Comet Duct Sensors

The T3113D is a low-cost temperature and humidity transmitter with an LCD display and isolated 4-20m outputs. Right angle duct mount probe.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

TECHNICAL DATA
MEASURED VALUE
Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

  • Measuring range -30 to +125 °C
  • Accuracy ±0.4 °C
  • Resolution 0.1 °C

HUMIDITY SENSOR

  • Measuring range 0 to 100 % RH
  • Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
  • Resolution 0.1% RH

DEW POINT

  • Measuring range -60 to +80 °C
  • Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
  • Resolution 0.1 °C

GENERAL TECHNICAL DATA

  • Operating temperature -30 to +80 °C
  • Channels internal temperature and humidity sensor
  • Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
  • Output 4-20 mA, galvanic isolated
  • Range of humidity sensor temperature compensation all temperature range
  • Configuration of output user adjustable from PC; measured range + value
  • Power 9-30 Vdc
  • Protection class IP65 electronics; IP40 sensors
  • Dimensions 88,5 x 95 x 195 mm; stem length 150 mm
  • Weight approx. 150 g
  • Warranty 3 years

Downloads

Quick Start Guide >>

User Manual >>
