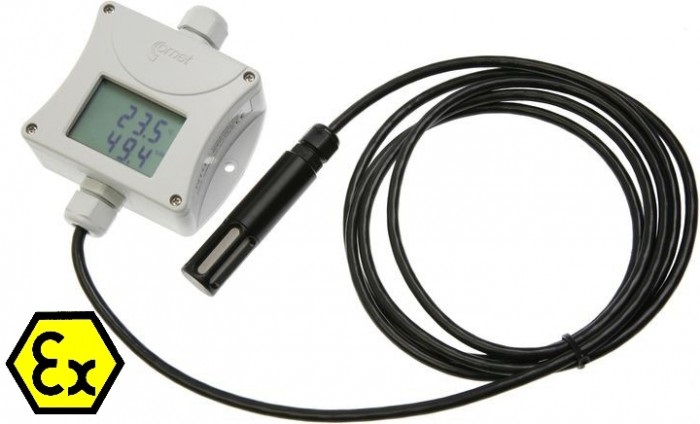

T3111Ex Intrinsically Safe External Temperature and Humidity probe with 4-20mA output

T3111Ex Intrinsically Safe External Temperature and Humidity probe with 4-20mA output
Zoom  Zoom
Our Price:  £234.00(£280.80 Inc. VAT)

Temperature Inputs:  1
Humidity Inputs:  1

Availability:

Special order, 5-10 days

Special order, 5-10 days

The T3111Ex is an intrinsically safe temperature and humidity transmitter with an isolated 4-20mA output for use in potentially explosive environments. ATEX certified for outdoor or indoor use.


  • Measured Value: Relative Humidity + Temperature
  • Construction Type: With T+RH Probe on 1m Cable
  • Design: Industrial
  • Temperature Measuring Range: -30 to +105°C
  • Relative humidity range: 0 to 100%
  • Accuracy of temperature output:    ±0.6°C
  • Accuracy of humidity: ±3.0% relative humidity from 5 to 95% at 23°C
  • Temperature operating range (of case with electronics) -30 to +60°C
  • ATEX certification for use in potentially explosive environments.
  • IP protection: IP65 electronics, IP40 sensors
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 220g


Downloads

User Manual >>

ATEX Certificate >>
