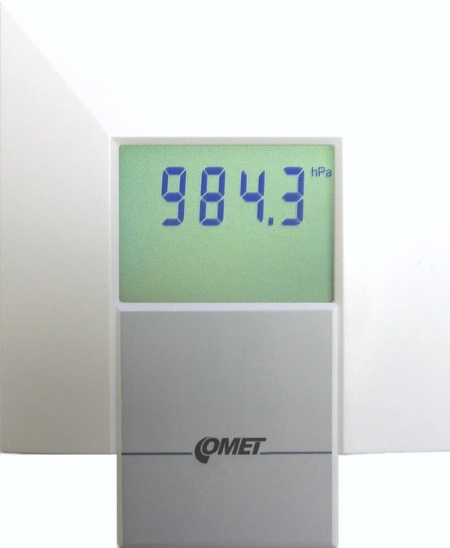

T2118 Internal Barometric pressure transmitter - 4-20mA output

Zoom

Our Price:  £163.00(£195.60 Inc. VAT) Pressure:  1 Availability:      Special order, 5-10 days Tweet Barometric pressure transmitter for exacting interiors in building energy management and HVAC systems. Designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.

• Output: 4-20mA
• Design: Internal aesthetic
• Maximum measuring range: 600 to 1100hPa
• Accuracy: ±(1,3hPa+0.06% from adjusted output span) at 23°C from 800 to 1100hPa
• Available pressure units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
• Temperature operating range: -30 to +80°C
• IP protection: IP54
• Power: 9-30Vdc, current consumption approximately 6mA
• Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
• Weight: approximately 220g

Downloads

Quick Start Guide >>

User Manual >>
