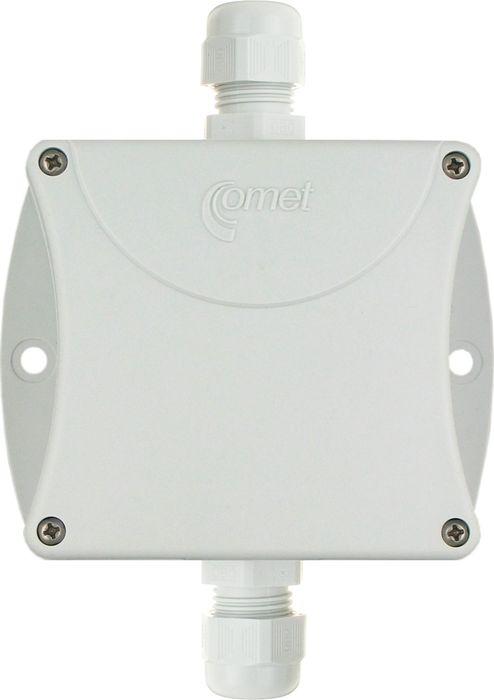

P6181 4-20mA Transmitter for PT100 Temperature Sensors

P6181 4-20mA Transmitter for PT100 Temperature Sensors
Zoom  Zoom
Our Price:  £34.00(£40.80 Inc. VAT)

Temperature Inputs:  1

Availability:

Special order, 5-10 days

Special order, 5-10 days

The P6181 is a low-cost temperature transmitter with an isolated 4-20m output. It can accept an external 2,3 or 4-wire PT100 temperarture probe offering a measurement range of -100 to +200°C.


  • Output: 4-20mA
  • Design: Industrial
  • For use with external PT100 temperature sensor
  • Temperature Measuring Range: -100 to +200°C
  • Accuracy of temperature output:    ±0.3°C
  • Temperature operating range: -30 to +80°C
  • IP protection: IP65
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 220g


Downloads

User Manual >>
