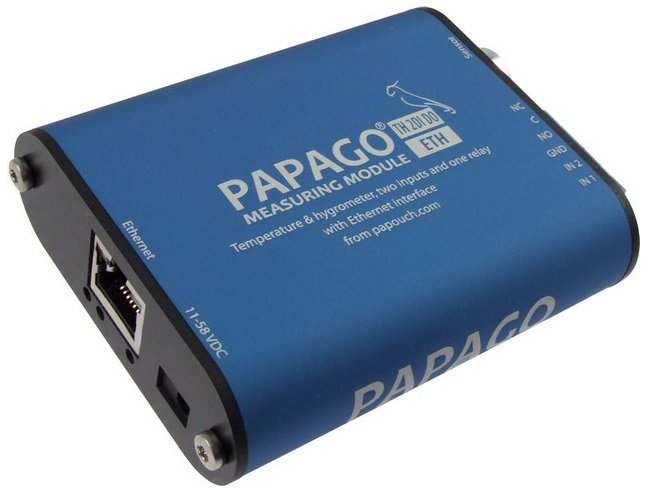

Papago TH2DIDO - Ethernet 2-Channel Temperature, Humidity Alarm with 2 Digtal In, Relay Out

Papago TH2DIDO - Ethernet 2-Channel Temperature, Humidity Alarm with 2 Digtal In,  Relay Out
Zoom  Zoom
Our Price:  £129.00(£154.80 Inc. VAT)
Add DIN Rail Clip:
Add UK 15V DC Mains PSU:

Digital Inputs:  2
Digital Outputs:  1
Temperature Inputs:  1
Humidity Inputs:  1
Pulse Counter Inputs:  2

Availability:

1 in stock, immediate despatch

1 in stock, immediate despatch

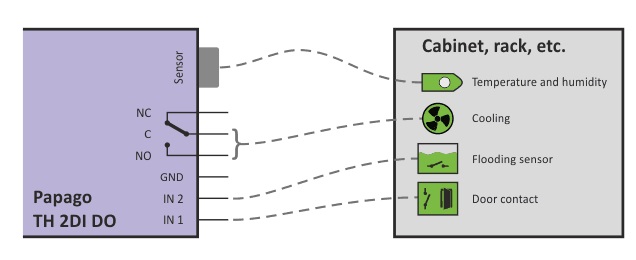

The Papago TH 2DI DO is used as an environment monitor – it measures temperature, humidity and dew point. It also has two digital inputs for contact closure or pulse counting and a relay output. The Papago TH 2DI DO is web based, with monitoring and setup all performed via any web browser. emails can be sent on alarm and the unit supports TCP, UDP, HTTP (WEB), SMTP (e-mail), SOAP, Modbus TCP and SNMP protocols. The FREE Wix chart/data logging software is also available.


  • Ethernet based Temperature or Humidity Alarm and digital input unit
  • Accepts 1 external sensor (sensors are not included)
  • SNS_TEMP sensors: range -55 to +125 °C
  • SNS_THE sensors:
    • temperature range: -40 to +123.8 °C
    • humidity range: 0 to 100 % RH and dew point
  • Measurements per second: 1, 2 or 5 according to the settings
  • 2 Digital Inputs configured for;
    • Volt free contact.
    • Pulse input: max 1kHz (eg from electricity, water, gas meter etc)
    • Logic 5V TTL levels
  • 1 x change-over Relay
  • Rating: 50VAC/85V Dc @ 2A
  • Relay Modes;
    • Manual control
    • Pulse control
    • Input 1 or 2 mirroring
    • Thermostat for temperature, humidity or dew point
  • Automatic e-mail alarms when pre-set thresholds are exceeded.
  • SNMP and MODBUS TCP protocols - simple to integrate with management or SCADA software
  • Automatic temperature sending via HTTP GET request.
  • Automatic temperature sending via HTTP POST in XML format.
  • All parameters easily accessible in XML format.
  • FREE Wix software for displaying and logging temperature values
  • Power Supply: PoE standard: IEEE 802.3af or external power supply 11 to 58 V DC
  • Typical power consumption 1.8 W
  • Dimensions (without connectors): 88 × 70 × 25 mm
  • Operating temperature range: -20 to +70 °C

The Papago TH 2DI DO is used as an environment monitor – it measures temperature, humidity and dew point. It also has two digital inputs for contact closure or pulse counting and a relay output.

WEB page

It is possible to easy monitor the measured temperatures and also to configure TH 2DI DO over the Intranet interface. The pages are secured by means of user name and password. It is possible to setup a separate password for the configuration and another one for the display of current values.

XML file

It is also possible to import all the values from TH 2DI DO in the XML file format. This format is easy to process by the application or to read by the web service.

SNMP protocol

The SNMP protocol is used in large companies for the centralized administration and monitoring of all hardware and technologies. TH 2DI DO is able to communicate via this protocol and, according to the setup, It sends SNMP traps when the pre-set critical limits are exceeded. It is also able to periodically send traps with current values.

E-mail

The TH 2DI DO can send e-mails if one of the thresholds set for any of the measuring channels has been exceeded.

TCP or UDP protocol

The is also able to operate as the TCP client or TCP server or to communicate via UDP. An ASCII protocol is used by TH 2DI DO in these ways of communication. This way of communication is similar to the serial link communication.

MODBUS TCP protocol

TH 2DI DO is also able to communicate via the standard industry protocol of MODBUS TCP use by popular SCADA packages such as DAQFactory

Wix - FREE Powerful datalogging, charting and alarming sftware


  • Display of numeric values.
  • Viewing the colour column (ie bar graph) with colour according to the current value.
  • View the text of the current value.
  • View the chart - add several charts, add channels to a single chart
  • Datalogging - Save the history of measurement in a text file for further processing or evaluation.
  • Wix can monitor inputs against pre-set alarm limits;
    • Send alarm e-mail
    • Switching on output (relay) to Quido
    • Reset the counter (counter) input Quido
    • Send alarm text message by SMS (requires GSM MODEM)


Downloads

User Manual >>

Ethernet Configurator >>

SNMP MIB table  >>

Wix Software Download >>
