TDS-THERM - LED Display for TQS3 Thermometers

Zoom

Our Price:  £69.00(£82.80 Inc. VAT) –+ Add to Basket Availability:      Special order, 7-14 day despatch Share Tweet The TDS thermometer can display temperature readings from up to 3 TQS3 thermometers over an RS485 network. The TDS Thermometer works as an independent device without the need to be connected to a PC.

• Industrial Thermometer with IP64 coverage
• Very long distance between thermometers and display (up to 1200m)
• Easy installation with no settings - just plug and measure
• Various versions of TQS3 thermometers

The TDS Thermometer can display temperature from up to three thermometers, that are connected to it. Maximum cable length is 1200m. Measured temperature range is -55°C to +125°C

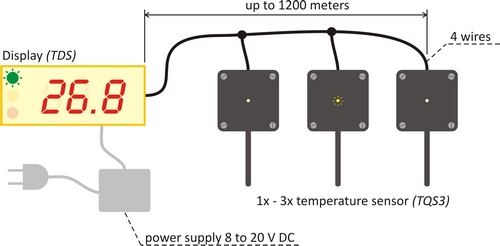

TDS thermometer is connected by a four-wire cable to all TQS3 sensors.All sensors and the display are powered from a single power supply unit.

Temperature is displayed on one luminous display with 10mm sign height. In case more than one thermometer is connected to it, al three temperatures rotate after three seconds. Which of the three temperatures is actually displayed is indicated by an indicator right next to the display.

Thermometer addressing: The display expects connected thermometers to have addresses "1" through "3". If you order Thermometers with the TDS Thermometer display, we will send you the thermometers set correctly. If however you order those separately, you will have to specify the addresses while ordering.

Downloads

User Manual >>
