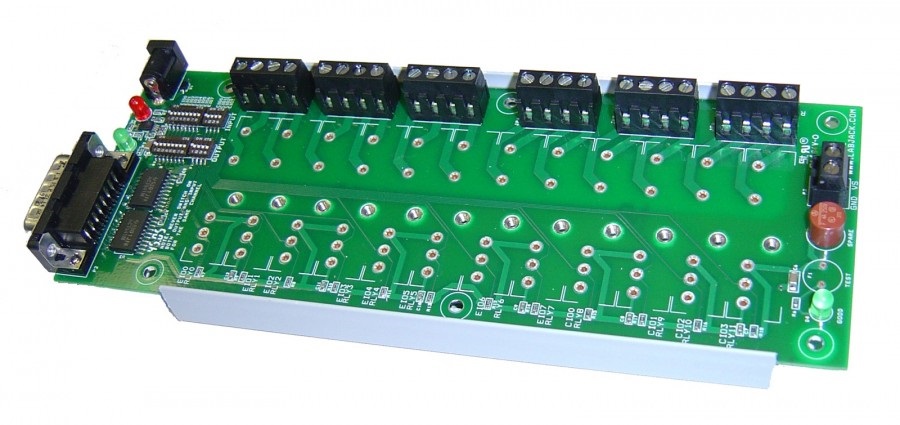

RB12 SSR Module Expansion Board

RB12 SSR Module Expansion Board
Our Price:  £109.00(£130.80 Inc. VAT)



Special order, 7-14 days

Provides 12 industry standard relay module sockets to a U3, U6, UE9, T4, or T7. Commonly used to interface a LabJack with high voltages/currents. The RB12 relay board connects to the DB15 connector on the LabJack, using the 12 EIO/CIO lines to control up to 12 I/O modules.

  • Relay modules are NOT included
  • Supports output or input module control types
  • Modules are available with voltage ratings up to 200 VDC or 280 VAC, and current ratings up to 3.5 amps

I/O modules are available from a variety of manufacturers such as Grayhill, Crydom, or Kyoto, and allow the LabJack to control or monitor 120/240 VAC and/or 3-60 VDC. The RB12 is designed to accept G4 series digital I/O modules from Opto22

For more information, reference the datasheet.
