CP-IO22 - Digital IO Expansion Card

CP-IO22  - Digital IO Expansion Card
Zoom  Zoom
Our Price:  £49.00(£58.80 Inc. VAT)

Availability:

Special order, 7-21 days

Special order, 7-21 days

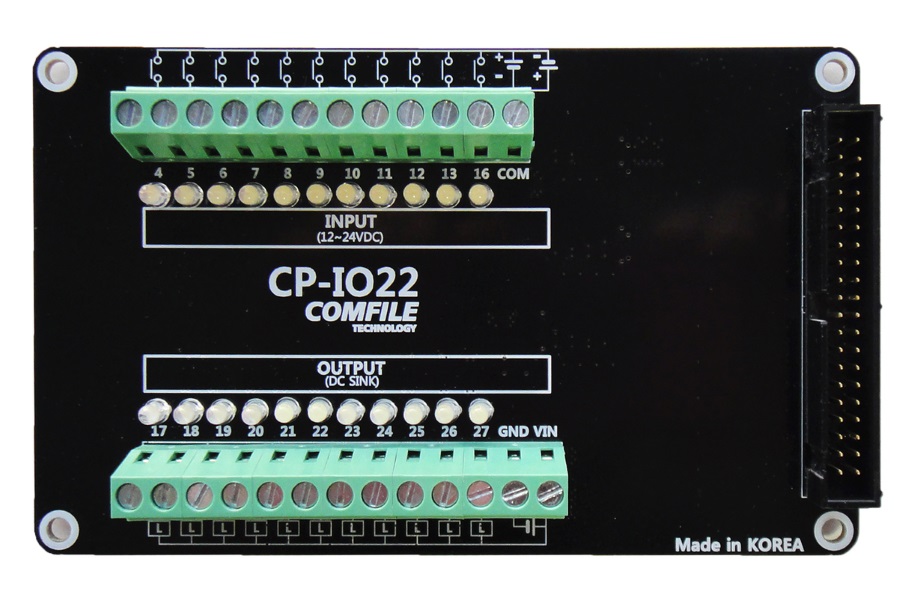

A Digital IO expansion card primarily designed for use with the ComfilePi range of Raspberry PI Panel PC's. Has 11 open collector transistor outputs and 11 opto-isolated digital inputs. Connects to the ComfilePi  via its IDC ribbon cable. Complete with LED indicators.


  • 11 Inputs
    • Voltage Range: 12 ~ 24V
    • Absolute Min/Max Voltage Range: 3.3 ~ 28V
    • Response Time: 5ms
    • Input OFF Level: <1.8VDC
    • Input ON Level: >2.5VDC
    • Indicator LED OFF Level: <4.5V
    • Indicator LED ON Level: >5.0V
  • 11 Outputs
    • DC Output Sink (NPN) x 11
    • Maximum Output Voltage: 30VDC
    • Response Time: 10ms
    • Current: 150mA
  • Supply Voltage: 5VDC (powered by ComfilePi's 5V pin)
  • Current Rating: 400mA or more
  • Humidity: 35 ~ 85% RH
  • Temperature: -30 ~ 60 ℃
  • Size: 128mm X 78mm

The CP-IO22 pins are connected to the ComfilePi's GPIO header as follows.

Inputs: GPIO 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 16
Outputs: GPIO 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27
