RFID-USB-DESK

RFID-USB-DESK
  Zoom
Our Price:  £55.00(£66.00 Inc. VAT)
+


Availability:



2 in stock, immediate despatch

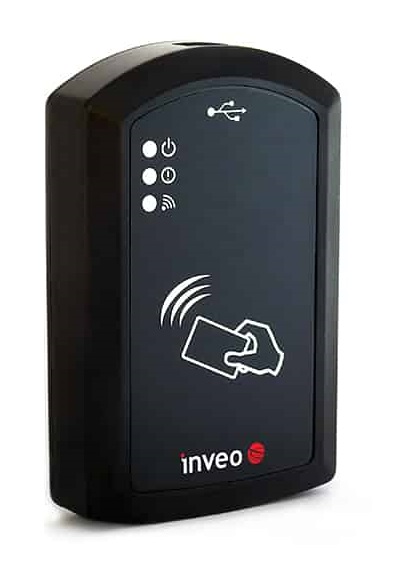

RFID USB Desk is a small desktop reader powered directly by a USB port. The device is used to read RFID tags. The configuration software allows user to modify the code.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 125kHz, EM4102 compatible
  • 1 x USB Port,  operating either as;
    • USB HID keyboard device
    • Virtual Serial Port
  • Reading range: ≤ 10cm
  • Dimensions:  22mm x 57mm x 91mm
  • Operating temperature range: -10 to +30°С

RFID-USB-DESK Reader can read codes from transponders working in UNIQUE 125kHz standard. RFID reader connects to PC via USB cable. Power for the device is also supplied over USB. The RFID-USB-DESK can install either has a USB HID device or as a Virtual Serial Port to allow easy integration with users software. RFID-USB-DESK Reader is provided with 3 LEDs, which can be assigned to events: ON, OFF or ON READ.

The RFID-USB-DESK Reader can be also integrate with user own software through the use of CDC mode (virtual serial port). This mode allows to take complete control over the device. User can light each LED individually and run a built-in sound generator. After approaching the transponder data will be automatically sent to the serial port. As a result, in a very simple way user can create an application that expects approaching the transponder and depending on the read code can generate increasing ring (eg. acceptance) or the sound of falling (eg. rejection).




Downloads

User Manual >>

USB Drivers >>

Configuration Software >>
