NANO_ANALOG - Ethernet and RS485 Analogue Input Unit with Web, Modbus TCP, SNMP

NANO_ANALOG - Ethernet and RS485 Analogue Input Unit with Web, Modbus TCP, SNMP
  Zoom
Our Price:  £186.00(£223.20 Inc. VAT)
+

Analogue Inputs:  1

Availability:



1 in stock, immediate despatch

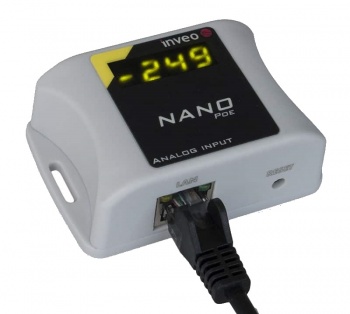

The NANO_ANALOG is a Ethernet input unit accepting voltage and 4-20mA current loop signals with a LED Display, POE power supply, web interface and Modbus TCP communications - ideal for low-cost industrial monitoring applications. The unit also can generate a SNMP trap on over or under alarm for IT monitoring applications in server rooms. Also has a RS485 port talking Modbus RTU for non-Ethernet applications.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 1 x Analogue Input; 0-5V, 0-10V, 0-20mA, 4-20mA
  • Input impedance: 60k volatge input, 200ohm current input
  • Measurement error: <0.5%
  • Frequency of measurement: 4Hz
  • Inputresolution: 17 bit
  • Web Interface
  • Communications Protocols;
    • embedded web server using popular browsers (MOZILLA FIREFOX, OPERA, CHROME)
    • Windows and Linux command line programs
    • HTTP protocol,
    • Modbus TCP protocol
    • SNMP protocol
    • own application, via TCP protocol (shared)
    • MQTT protocol (serwer Inveo)
  • RS485 Port
    • Modbus RTU protocol
    • Transmission speed:1200,2400,4800,9600,19200,38400,57600 bps
    • Parity: None, Odd, Even, Mark, Space, 2 Stops
  • High or Low alarm can send a SNMP trap
  • Dimensions: 90mm x 51mm x 68mm
  • Power supply voltage:
    • PoE IEEE 802.3af
    • 10-24 VDC
  • Operating Temperature: -10°C to 60°C
  • CE compliant


Downloads

User Manual >>

Search Utility >>
