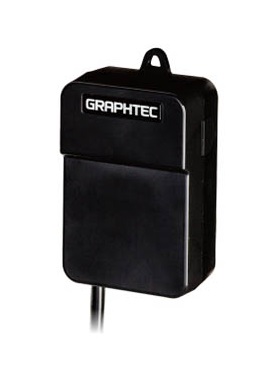

GS-DPA-AC Dual Port Current Sensor Adaptor for the GL100

GS-DPA-AC Dual Port Current Sensor Adaptor for the GL100
  Zoom
 GS-DPA-AC Dual Port Current Sensor Adaptor for the GL100GS-DPA-AC Dual Port Current Sensor Adaptor for the GL100
Our Price:  £202.00(£242.40 Inc. VAT)
+

Availability:



Incoming, 1-2 days

The GS-DPA-AC can measure electric power current by connecting an AC current sensor (50 A clamp/GS-AC50A; 100 A clamp/GS-AC100A; 200 A clamp/GS-AC200A) single-phase 2 wire, single-phase 3 wire, thre-phase 3 wire, etc. to the GL100 Data Logger. Can use up to the 2 AC current sensors simultaneously.


  • Measures current using the AC current sensor probes
  • Calculated value is Power and Accumulated Power
  • Application circuit: Single-phase two-wire, Single-phase three-wire, or Three-phase three-wire
  • Number of sensor: Two sensors are able to connect (using the same type of sensor and the power system)
  • Method of measurement: Scans channels (sensors), Non-isolated input, using RMS converter
  • Measuring range: 50, 100, 200 A RMS (varies by the sensor probes)
  • Applicable frequency: 50 or 60 Hz
  • Measuring accuracy: +/-2 % of full sale +/-1 digit (at temperature 23 degree C, and within rated current and frequency)
  • Uses the Graphtec Clamp-on current probes (not included)
